SWB VW Transporter Floor Insulation and Acoustic Package
Dodo SWB Floor Sound Deadening Package – Dodo Duo & DEADN Hex
SWB Campervan Floor Sound Deadening Kit
Reduce road noise, low-frequency road drone and airborne noise with our Dodo SWB Floor Package, designed specifically to acoustically treat the floor and wheel arches of a short-wheelbase van or campervan.
The package combines Dodo Duo 4.5mm for full coverage of the rear floor with Dodo DEADN Hex 1.8mm for the four interior wheel arches.
This combination provides a targeted approach to campervan floor sound deadening, helping reduce the noise and vibration that can make its way into the cabin from the road and vehicle structure.

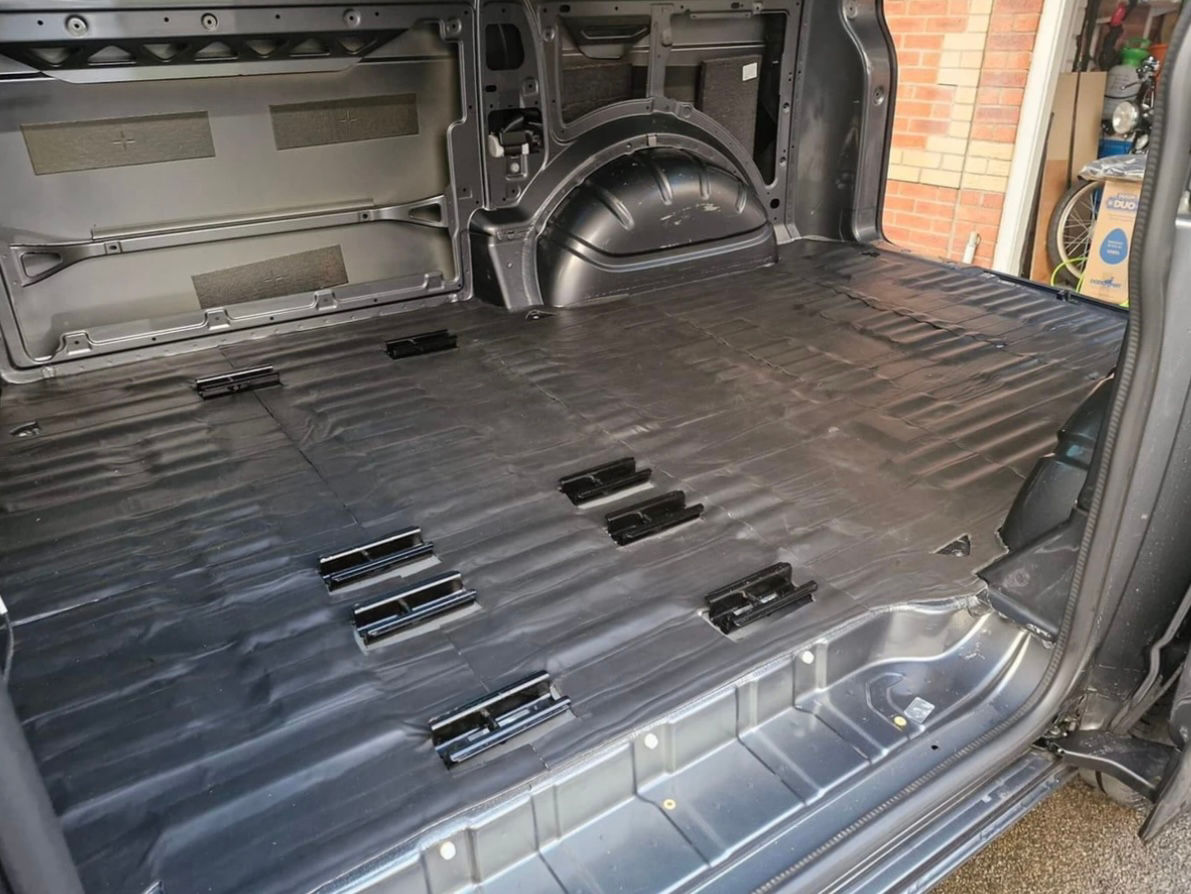

Dodo Duo – Full Rear Floor Coverage
The rear floor is one of the key areas to treat when reducing low-frequency road drone and airborne noise in a van.
The package includes 2 x Dodo Duo 4.5mm rolls, designed to provide full coverage of the rear floor on a typical short-wheelbase vehicle.
Dodo Duo combines sound deadening and acoustic insulation in one product, making it particularly well suited to large floor areas.
Its construction combines a 1.5mm butyl vibration damping layer with a 3mm closed-cell acoustic and thermal foam layer.
This means there is no need to install a separate sound deadening layer and additional acoustic liner over the floor.
Dodo Duo can also be used in the front cab floor area where additional acoustic treatment is required.
Key Benefits of Dodo Duo
Full rear floor coverage
Helps reduce road drone
Helps reduce airborne noise
Helps reduce panel vibration
Combines sound deadening and insulation
4.5mm total thickness
1.5mm butyl deadening layer
3mm closed-cell foam layer
Flexible and easy to install
Strong self-adhesive backing
Water and oil resistant
No heating required
Designed for large floor areas
Install Over Factory Flooring
One of the advantages of this floor package is that Dodo Duo can be installed beneath many factory floor coverings or rubber mats.
This can allow you to improve the acoustic performance of the floor without necessarily removing and replacing the original factory flooring, depending on the vehicle and available clearance.
Always check the available depth and clearance before installation to ensure the additional material will not interfere with factory components, fixings or trim.
Dodo DEADN Hex – Interior Wheel Arches
The package also includes 20 sheets of Dodo DEADN Hex 1.8mm, providing a targeted treatment for all four interior wheel arches.
Wheel arches are another important source of road noise, tyre noise and vibration, particularly in the rear of a van.
Applying DEADN Hex to the interior face of the wheel arches helps damp the metalwork and reduce unwanted vibration and structural noise.
DEADN Hex is a self-adhesive, foil-backed sound deadening material. Simply cut the sheets to suit the shape of the wheel arch, peel away the backing and apply to clean, prepared metalwork.
DEADN Hex Benefits
Helps reduce wheel arch vibration
Helps reduce tyre and road noise
Helps reduce structural noise
Self-adhesive installation
Foil-backed construction
1.8mm thickness
Easy to cut and shape
Designed for automotive applications
What's Included?
2 x Dodo Duo 4.5mm
For full coverage of the rear floor of a typical SWB vehicle.
Dodo Duo combines:
1.5mm butyl sound deadening
3mm closed-cell acoustic and thermal insulation
4.5mm total thickness
20 x Dodo DEADN Hex 1.8mm Sheets
Designed to treat all four interior wheel arches.
Designed for SWB Vans & Campervans
This package is ideal for short-wheelbase vans, campervans and vehicle conversions where reducing floor and wheel arch noise is a priority.
It is particularly suitable for:
VW T4
VW T5
VW T6
VW T6.1
VW Transporter
VW Caravelle
Mercedes Vito
Ford Transit
SWB campervan conversions
Commercial van conversions
DIY van builds
A Targeted Approach to Van Sound Deadening
Rather than adding multiple separate products to the floor, this package uses Dodo Duo as an all-in-one floor treatment, combining vibration damping and acoustic insulation in a single 4.5mm layer.
Combined with DEADN Hex on the wheel arches, the result is a practical SWB van sound deadening package designed to tackle two of the key routes through which road noise and vibration enter the cabin.
For a quieter and more comfortable campervan, this package provides a straightforward way to target floor noise, road drone, airborne noise, tyre noise and wheel arch vibration.
