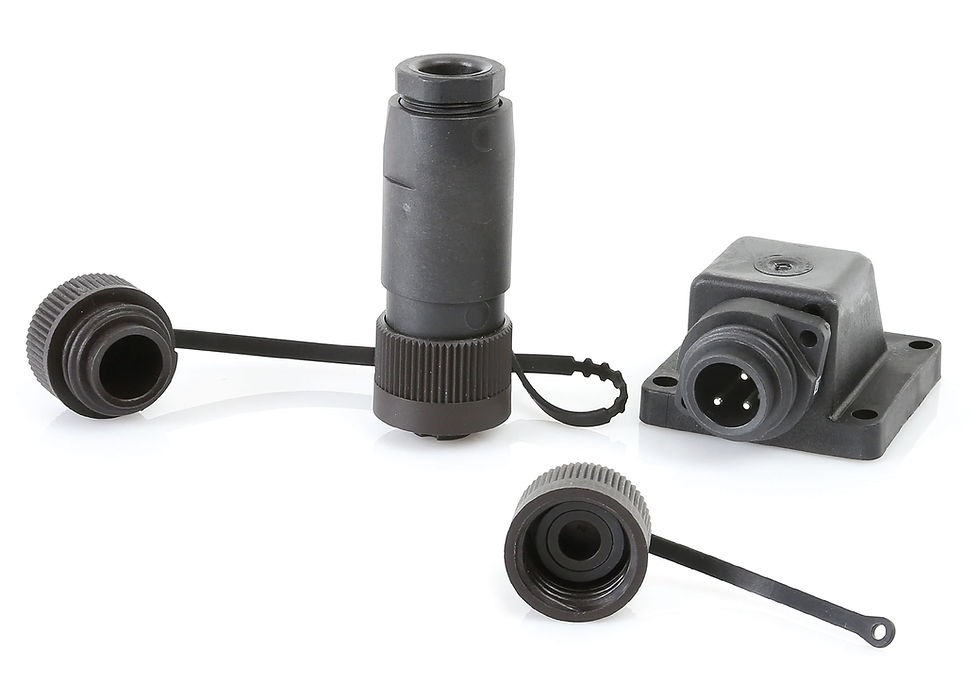

OUTLET Surface Mounted 240V Electric Hookup IP67 Shore Power Connector NT
OUTLET 240V Compact 240V Connection
A compact 240V power outlet connection designed to provide power from your van to an external accessory, such as an awning. With an IP67 rating and BS-rated design, this is a neat, weather-resistant solution for vehicle conversions where a compact external power connection is required.
IMPORTANT: This is NOT a standard 240V campsite hookup inlet. It is a POWER OUT connection and must be supplied with 240V from within the van. It is designed to provide an external power supply, such as to an awning.
Key Features
IP67 rated
16A rating
Compact BS-rated design
Designed as a power outlet connection
Protected surface-mounted connection with female live pins
Male pins are located on the lead, rather than the vehicle-mounted connection
Suitable for external vehicle applications
Supplied with protective cap
Safe & Protected Connection
The surface-mounted connection uses protected female live pins, helping prevent exposed live contacts when the outlet is not connected. The male pins are positioned on the connecting lead.
The IP67 rating provides protection against dust and water immersion, including immersion in water up to 1 metre deep for up to 30 minutes, when correctly installed and capped.
UK Distributor – Phillipi Marine
We are the UK distributor for Phillipi Marine products, making these compact connections available directly through us.
This is one of the few compact BS-rated IP67 power outlet connections available for UK vehicle conversion applications.
Installation & Cable Requirements
The connection is rated for a 400V feed, with a 16A maximum rating. For a typical UK installation, the connection would use UK 3-pole twin & earth Arctic cable, with a UK Commando connection at the main hookup side. Cable and Commando connection are not supplied.
This product should be installed by a suitably qualified person. It must be correctly integrated into the vehicle's 240V electrical system and is not intended to replace a standard campsite hookup inlet.
Ideal for Campervan & Motorhome Conversions
A compact and robust solution for providing 240V power out from a van, particularly where you need a neat external connection for an awning or other accessory.
Please note: This is an OUTLET connection only, not a standard shore power hookup inlet.
Fitting Guide
On the rear of the socket the lines are using wired as follows:
1 - Live
2 - Neutral
3 - Earth
Crimps/Ferrules can be used if required.
NOTE If wiring and powering from a UK domestic socket you must ensure the plug top is rated at 13A or below OR any dediated supply on a MCB is rated to 10A or less than 16A. A 32A ring main will share 16A across the ring which can max out the load. If in doubt speak to a local Electrician for further advice.
This does not impact on UK campsites which have a 10A MCB feed
Connection - a bad connection (pin not clean, screw not tight etc). This would cause the connection to be high resistance which would generate heat
MCB – Change to a 10A dedicated feed to avoid maxing out at 16A even with a 13A fuse on the plug top. The actual current, where a BS 1362 fuse will blow, is about 1.66 times the rated value, so for a 13A fuse this will be 21.6A
To prevent the connector being opened unintentionally when used in electrical circuits containing hazardous life parts, the thread between the housing and the connector head must be secured using a suitable cyanoacrylate adhesive.
Connectors used in electrical circuits containing hazardous life parts must only be assembled and used by or under the supervision of persons with the requisite electrotechnical training, taking the applicable regulations and standards into account.
The end user must take suitable safety measures to ensure that the connector cannot be disconnected accidentally.
Connectors with degree of protection IP 67 and IP 68 are not suitable for use under water. A 20mm electrical shroud must be used (SHROUD not supplied - if you are fitting anywhere that is not surface sealed this must be used)
To lock the cable connector to the connector, the threaded ring is tightened until it is ‘finger-tight’ (approx. 50 cNm).
