Silent Coat + 6mm Thermo Liner PRO

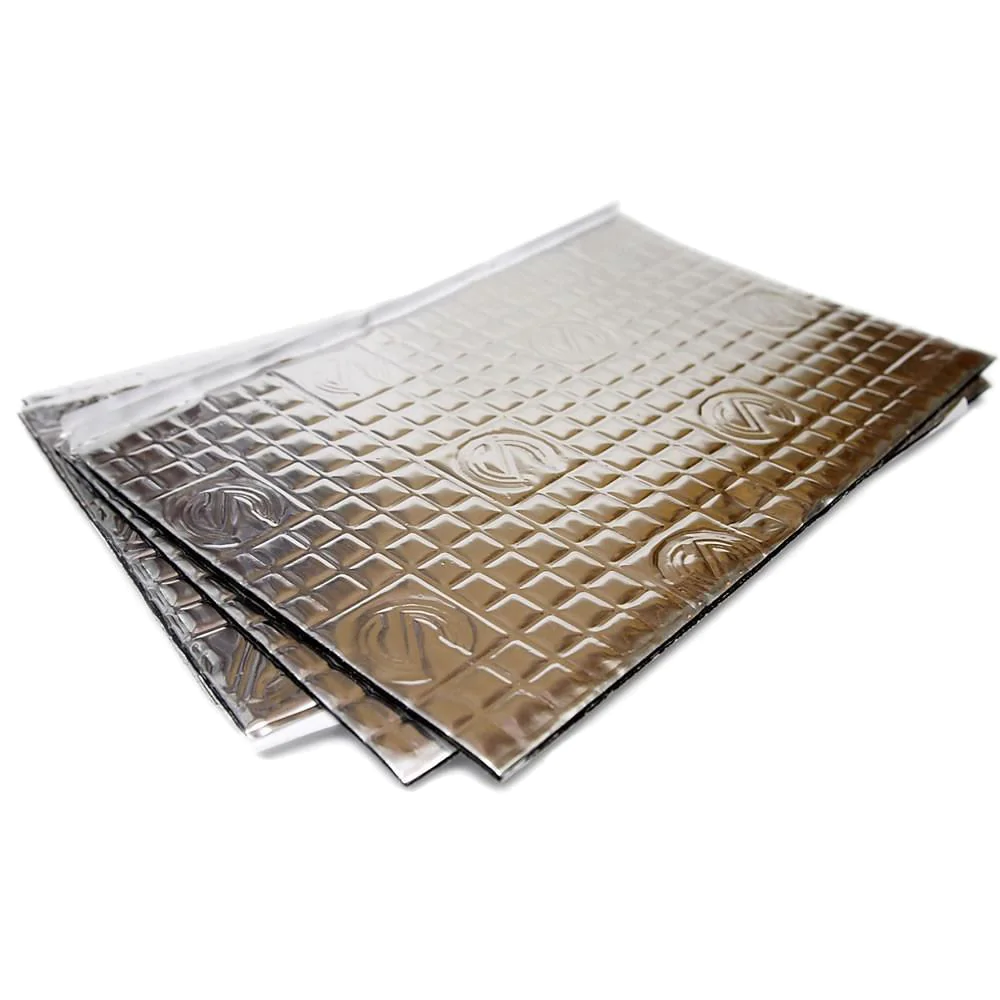

Silent Coat 2mm Damping Mat uses constrained layer damping to lower panel resonance and absorb structural vibrations, converting them into low level heat. Stop those nasty rattles, eliminate road and outside noise, insulate your vehicle and dramatically improve the sound of your car interior.

Silent Coat Damping Mat is a polymeric based damping material with a supercharged adhesive. With an Aluminum surface and a unique high-grade composition, it has been proven to be extremely efficient at the conversion of vibration to thermal energy. Silent Coat is very flexible which is very important as it allows it to properly adhere to a contoured panel. It can be installed anywhere in your vehicle including under the bonnet.

With high grade construction and highly effective damping, Silent Coat Damping Mat is already the choice of many automotive professionals.

Technical advantages:

• Self adhesive 2mm butyl based visco elastic polymer active layer

• Aluminium constraining layer for maximum noise reduction improves performance

• Highly efficient vibration damper

• Superior performance to comparable products

• Contains 30% more active material than the Dynamic sounding brand leader

• Highly efficient performance requires less product

• More economical in use compared to competitors

Product features:

• Soft and easy to use

• No nasty smell unlike inferior bitumen products

• High grade adhesive stays stuck even in extreme temperatures

• Non flammable

• Professional butyl based construction

• Unbeatable cost to performance ratio

Specification:

• Silent Coat Damping Mat

• 2mm Thickness

• Butyl Construction

• Mastic High Adhesive

• 0.1mm Aluminium Top Panel

• Special Deep Tension Anti Resonance Top

• Sheet size 375 x 250 mm, 14.76 x 9.84inches

• Weight 3kg/sq.m

Dodo Thermo Liner is our classic best selling 7mm sound and heat insulation material for a quieter warmer, van, camper or motorhome.

Dodo Thermo Liner is a high grade foil lined nitrile closed cell foam and is ideal for use on the van sides, floor, roof etc.

Dodo Thermo Liner is designed specifically for the UK vehicle market and will improve the comfort of any interior, but is perfect for camper vans, van conversions, Land Rover and vehicle restorations

Easily installed this self adhesive product will improve the cabin environment. Temperatures will be controlled, warmer in the winter, cooler in the summer. Less noise makes for a less tiring drive and your radio will sound clearer with less distortion.

• Efficient low profile insulation

• Easy installation - cut, peel & stick.

• High thermal efficiency nitrile foam

• Significant Noise reduction

• Warmer in the winter, cooler in the summer.

• Reduces condensation

• Acts as a barrier against heat loss

• Superior Crush resistance

• Improve van interior comfort

• Moisture resistant dense closed cell foam

• Reinforced reflective foil

• Strong Peel & Stick Self Adhesive

• High grade construction

• Flammability tested to FMVSS302

• Designed in the UK

• Thickness 7mm

• Total area  10 Square metres  (107 Square feet)

• Roll/Sheet size 1m x 10m

Dodo Mat DEADN Duo

This unique product offers two essential layers in one simple application! The Special Edition version features an enhanced 2mm sound deadening layer.

With soundproofing, & insulation combined, this product is perfect for floor and boot areas of the vehicle and will kill vibrations, block noise and insulate the panels. Simply peel & stick onto the metalwork in one easy application.

Sound Deadening Layer

Dodo Mat DEADN Duo has a 2mm butyl rubber deadening layer to reduce vibration from the panel and act as a barrier to airborne noise. More rubber and less mineral filler means better vibration damping and noise reduction. Dodo Mat DEADN Duo placed on the interior sheet metal of any vehicle will destroy unwanted vibrations & structural noise.

Insulation Layer

Duo features an integral 5mm Dodo Super Liner top layer. This special formulation closed cell foam has excellent thermal and acoustic properties, ideal to reduce noise and insulate the vehicle. The closed cell foam layer will act as a thermal insulating layer to help stabilise vehicle cabin temperatures throughout the year and reduce the chances of condensation forming.

Convenience

To increase installation convenience the product is supplied in one continuous 5m sheet (rolled) perfect for custom work and large floor areas.

• Makes metal panels as dead as a Dodo!

• Special Edition version features enhanced sound deadening

• Vibrodamping, Sound Proofing & Insulation combined.

• 7mm Thick with Strong Adhesive

• Aluminium & Pure Butyl Construction 1.8mm deadening

• Closed cell thermo acoustic 5mm foam insulation

• Soft & Flexible does not require heating

• Stop Rattles, Vibration, Heat & Noise

• Lower Road, Exhaust, Engine & Transmission Noise

• Heat Resistant from -50°C to +150°C

• Fully Water & Oil Resistant

• Very Flexible For Easy Installation

• Flammability tested for vehicle interiors ISO 3795:1989

• Peel & Stick Application

• Supplied as 50cm x 500cm Roll

• Coverage 2.5sq.m (26.9 sq.ft)

Fitting guide
