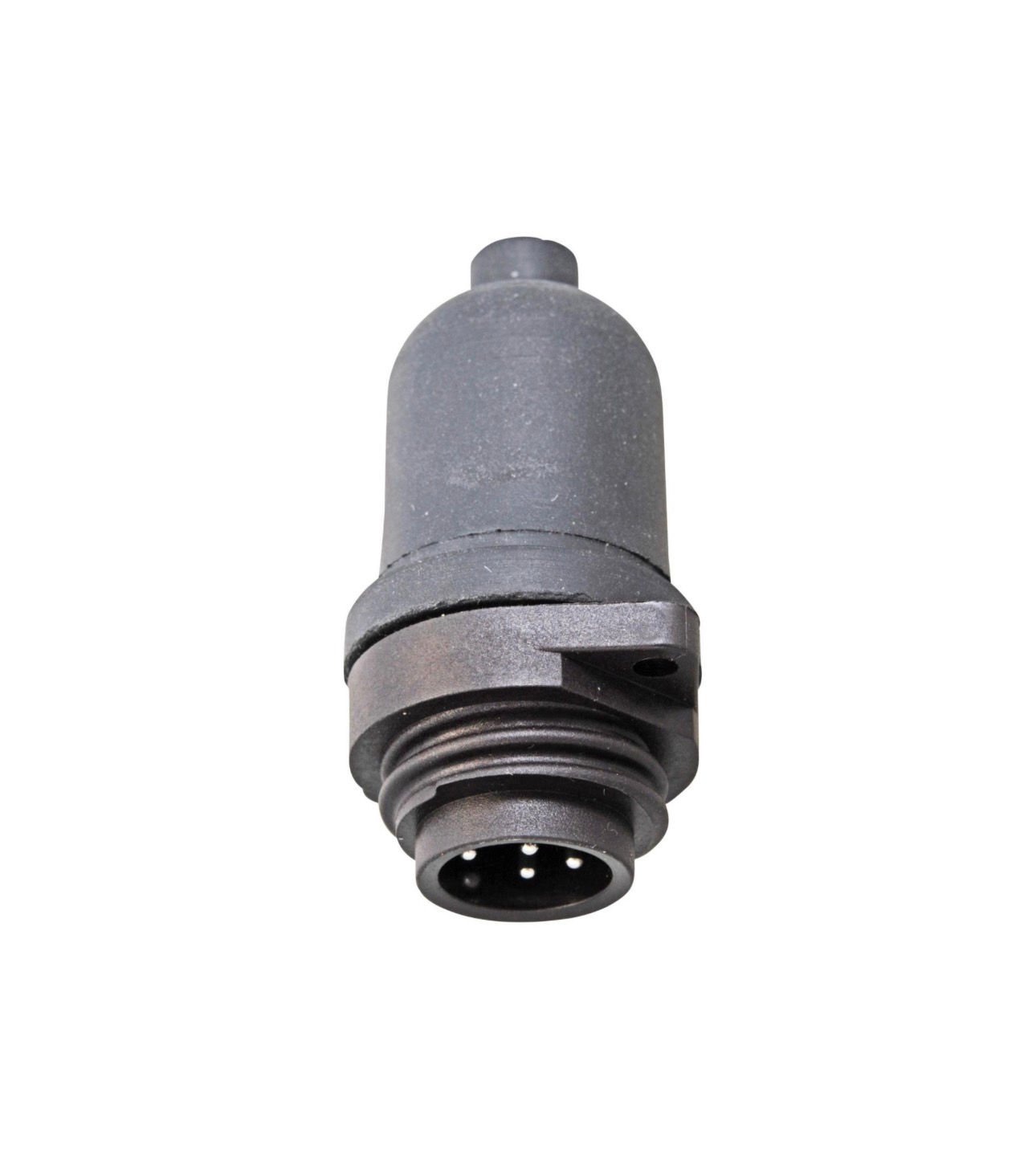

PHILIPPI 3-Pin Flange Plug
This water-resistant 692 series flange plug is ideal for use on board thanks to the glass fiber reinforced plastic housing. The 3-pin (2+PE) version is intended for disconnecting the shore power.
Technical data:
No. of poles: 2+PE
Connection cross-section max.: 2.5 mm²
Type of connection: screw
Cable outlet: 6-12 mm
Contact surface: Ag
Protection: IP67
Housing material: PBT-gv
Nominal current per contact: 16 A
Nominal voltage: 230 V
UL-94 flammability: self-extinguishing
Compliance + fitting
https://www.customveedubs.com/compact-ehu
NOTE If wiring and powering from a UK domestic socket you must ensure the plug top is rated at 13A or below OR any dediated supply on a MCB is rated to 10A or less than 16A. A 32A ring main will share 16A across the ring which can max out the load. If in doubt speak to a local Electrician for further advice.
This does not impact on UK campsites which have a 10A MCB feed
Connection - a bad connection (pin not clean, screw not tight etc). This would cause the connection to be high resistance which would generate heat
MCB – Change to a 10A dedicated feed to avoid maxing out at 16A even with a 13A fuse on the plug top. The actual current, where a BS 1362 fuse will blow, is about 1.66 times the rated value, so for a 13A fuse this will be 21.6A
- To prevent the connector being opened unintentionally when used in electrical circuits containing hazardous life parts, the thread between the housing and the connector head must be secured using a suitable cyanoacrylate adhesive.
- Connectors used in electrical circuits containing hazardous life parts must only be assembled and used by or under the supervision of persons with the requisite electrotechnical training, taking the applicable regulations and standards into account.
- The end user must take suitable safety measures to ensure that the connector cannot be disconnected accidentally.
- Connectors with degree of protection IP 67 and IP 68 are not suitable for use under water. A shroud must be used )not supplied if you are fitting anywhere that is not surface sealed)
- To lock the cable connector to the connector, the threaded ring is tightened until it is ‘finger-tight’ (approx. 50 cNm).
