Quantity Guide

​

SWB Small Van [Transporter, Vivaro, Relay]

​

Insulation | 10m2 Thermo Liner

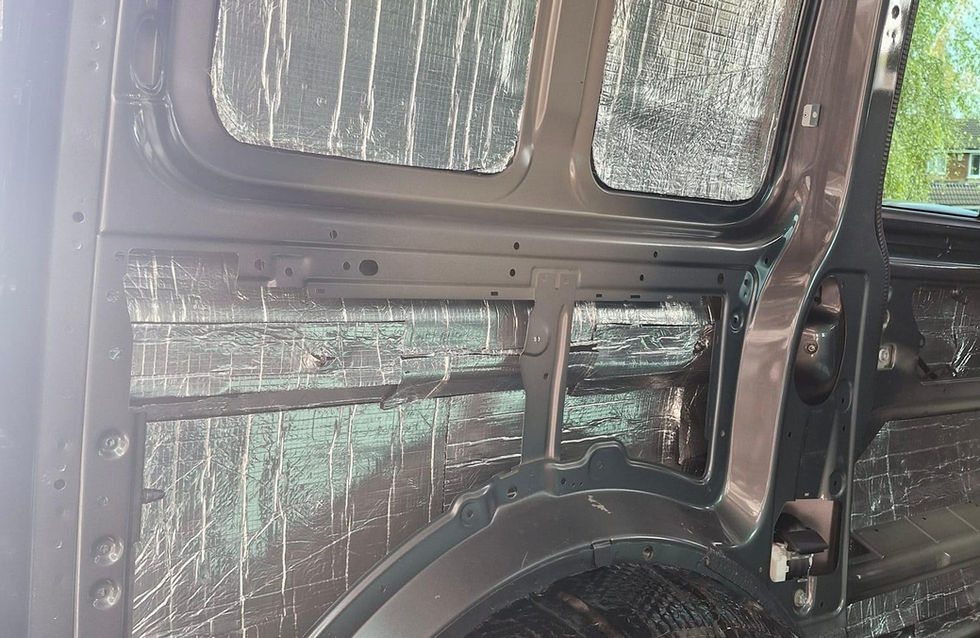

Sound Deadening | 60 - 80 Sheets (Sides & Roof)

Floor | 40 Sheets of sound deadening or x1 Twin Pack of Dodo Duo as an upgrade

​

LWB [Transporter, Vivaro, Relay]

​​

Insulation | 20m2 Thermo Liner

Sound Deadening | 60 - 100 Sheets (Sides & Roof)

Floor | 40 Sheets of sound deadening or x3 Rolls of Dodo Duo as an upgrade

​

Large Van (Crafter, MAN, Sprinter)

​

MWB

Insulation |15-20m2 Thermo Liner (If fitting windows)

Sound Deadening | 60 - 100 Sheets (Sides & Roof)

Floor | 40 Sheets of sound deadening or x3 Rolls of Dodo Duo as an upgrade

​

LWB

Insulation | 25-30m2 Thermo Liner (Allow for windows)

Sound Deadening | 60 - 100 Sheets (Sides & Roof) approx 8-10sqm

Floor | 40 Sheets of sound deadening or x4 Rolls of Dodo Duo as an upgrade

​

Dimensions



Short-wheelbase (SWB) Crafters come only in the Medium 5,986mm body length (sometimes known as L3):

• Maximum load length is 3,450mm

• Roof height is either 2,355mm (Low) or 2,590mm (High)

• Load volume is 9.9 cubic metres (Low) or 11.3 cubic metres (High)



Long-wheelbase (LWB) Crafters come with Long 6,836mm (L4) or Maxi / Long-Plus 7,391mm (L5) body lengths:

• Maximum load length is 4,300mm (L4) or 4,855mm (L5)

• Roof height is either 2,590mm (High) or 2,798mm (Super-High)

• Load volume for the long L4 van is 14.4 cubic metres (High) or 16.1 cubic metres (Super-High)

• Load volume for the long-plus L5 van is 16.4 cubic metres (High) or 18.4 cubic metres (Super-High)



All Crafters are 2,040mm wide (2,427mm with the door mirrors). Maximum load width on all versions is 1,832mm, with 1,380mm between the rear wheelarches.

​

​

​
